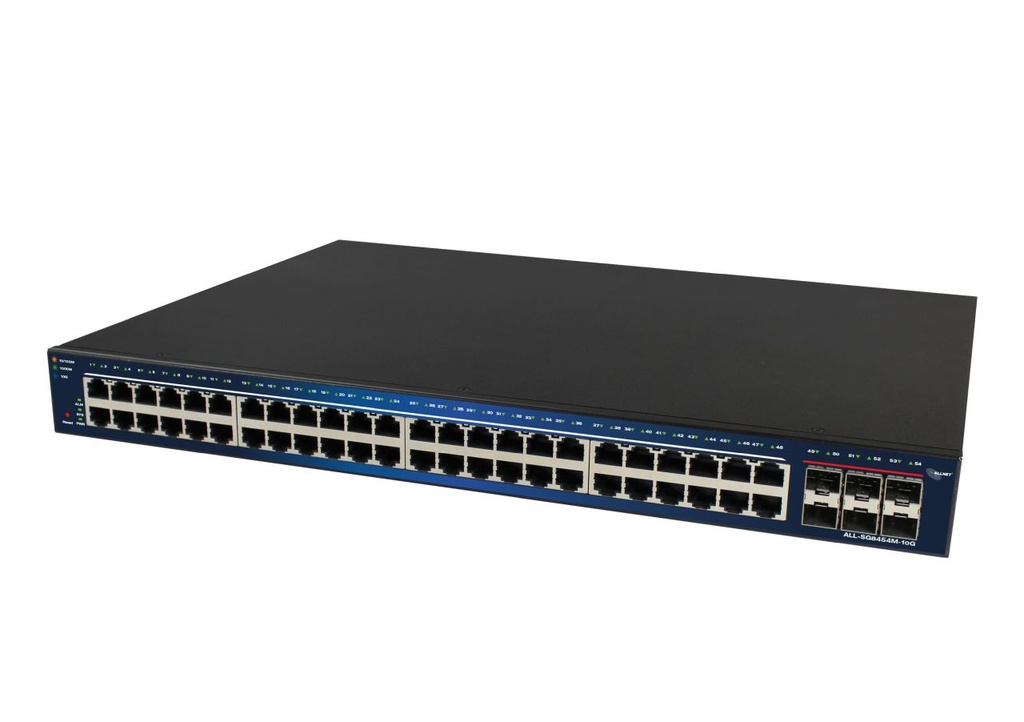

ALLNET Switch smart managed Layer2 54 Port • 48x Port 1 GbE • 6x SFP+ • 19• ALL-SG8454M-10G
| Merk: ALLNET |
EAN:
4038816119230
Interne referentie:
ALL-SG8454M-10G
ALLNET Switch smart managed Layer2 54 Port &bull 48x Port 1 GbE &bull  6x SFP+ &bull 19"&bull ALL-SG8454M-10G
Highlights:
- 48 port Gigabit non-blocking switch architecture + 6 SFP+ Mini-GBIC slots = Total 52 ports
- Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode (half/full) auto-detection
- Switch capacity up to 176Gbps
- 32K MAC address table
- Packet buffer size: 16Mbit
- 12K bytes jumbo frames
- Forwarding rate: 129.3Mpps (64 byte packet size)
- Supports Web UI for configuration
- Supports console port with CLI command
- Supports HW monitor alarm
Are you in need of a powerful network switch that fulfills all your requirements? Look no further! Our 48-Port Gigabit Switch with 6 additional SFP+ Mini-GBIC Slots is the perfect solution for you. Here are some of the impressive specifications this device has to offer:
Maximum Connectivity: With a total of 52 ports, including 48 Gigabit Ethernet ports and 6 SFP+ Mini-GBIC Slots, you're well-equipped to efficiently manage your network.
Intelligent Speed and Duplex Mode: The switch supports the NWay protocol, enabling automatic speed and duplex mode detection (10/100/1000Mbps, half/full), so you don't have to worry about manual configuration.
High Capacity: With an impressive switch capacity of up to 176 Gbps, this switch can handle even the most demanding applications and data transfers.
Large MAC Address Table: With a 32K MAC address table, this switch provides ample space for managing your network devices.
Jumbo Frames: For transferring large amounts of data, 12K-byte jumbo frames are available, enhancing your network performance efficiency.
Easy Configuration: With support for a web interface (Web UI), you can easily configure and tailor the switch to your needs.
Management Flexibility: The switch supports a console connection with CLI commands, giving advanced users full control over configuration.
Reliable Monitoring: With HW Monitor Alarms support, you'll be promptly alerted to any hardware issues, minimizing downtime.
Rely on our network technology to make your communication seamless and efficient. This switch provides the power and reliability your network requires. Experience the future of connectivity with our 48-Port Gigabit Switch.
Technical Drawings:
Technical Details:
Hardware Specs:
| Items | Specifications |
| Model No. | ALL-SG8454M-10G |
| Key Components |
|
| I/O ports | 48x GbE ports, RJ45 6 x 10G ports, SFP+ Reset Button: reset to default setting, re-start system Console port by RJ45 type |
| LED Define | PWR: Green LED
SYS: Green LED
Alert: Red LED
1-48 Port LED: Link/ACT:
49-52 port LED: SFP+: - Off: disconnected or fail - Blue: 10Gbps connected - Green: 1000Mbps connected - Blinking: data transmitting |
| HW feature | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3ae SFP+ IEEE802.3az EEE MAC address Table: 32K Packet buffer size: 16Mbit Jumbo Frame: 12K bytes 176Gbps switching capacity Forwarding rate: 129.3Mpps (64-byte package size) |
| Data Transfer Rate | Ethernet:10 Mbps(half duplex),20 Mbps(full duplex) Fast Ethernet:100 Mbps(half duplex),200 Mbps(full duplex) Giga Ethernet:2000 Mbps(full duplex) 10 Gigabit Ethernet:20 Gbps(full duplex) |
| System Monitor | HW Monitor IC: ADT7463
|
| Power Input | Internal power supply Input: 90~264VAC/47~63Hz Output: 12V/6A |
| Reset button | Support reset to default configuration |
| Dimension | 441(W) x 270(D) x 45(H) mm |
| FAN Design | Reserve One Fan |
| Temperature | Operating: 0 ~ 40? Storage : -40 ~ 70? |
| Humidity | Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 90% RH (non-condensing) |

Software Specs:
| Status | System Information |   |   |
| Logging Message |   |   | |
| Port | Statistics |   | |
| Error Disabled |   | ||
| Bandwidth Utilization |   | ||
| Link Aggregation |   | ||
| MAC Address Table | 16K |   | |
| Network | IP Address | Static / Dynamic |   |
| System Time | SNTP / From Computer / Manual Time |   | |
| Port | Port Setting | State / Speed / Duplex / Flow Control |   |
| Error Disabled | Recovery Interval | ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood | |
| Link Aggregation | Group |   | |
| Port Setting | State / Speed / Flow Control | ||
| LACP |   | ||
| EEE |   |   | |
| Jumbo Frame | 12K Byte |   | |
| PoE | Global Setting | Schedule Status |   |
| Priority Setting |   |   | |
| Power Limit |   |   | |
| Power Show |   |   | |
| VLAN | VLAN | Create VLAN | |
| VLAN Configuration | |||
| Membership |   | ||
| Port Setting | |||
| Voice VLAN | Property |   | |
| Voice OUI |   | ||
| Protocol VLAN | Protocol Group |   | |
| Group Binding |   | ||
| MAC VLAN | MAC Group |   | |
| Group Binding |   | ||
| Surveillance VLAN | Property |   | |
| Surveillance OUI |   | ||
| GVRP | Property |   | |
| Membership |   | ||
| Statistics |   | ||
| MAC Address Table | Dynamic Address | Aging Time |   |
| Static Address |   |   | |
| Filtering Address |   |   | |
| Spanning Tree | Property | State / Operation Mode / Path Cost / BPDU Handling | Operation Mode : STP/RSTP/MSTP |
| Port Setting |   |   | |
| MST Instance |   |   | |
| MST Port Setting |   |   | |
| Statistics |   |   | |
| Discovery | LLDP | Property | |
| Port Setting |   | ||
| MED Network Policy |   | ||
| MED Port Setting |   | ||
| Packet View |   | ||
| Local Information |   | ||
| Neighbor |   | ||
| Statistics |   | ||
| Multicast | General | Property | Unknown Multicast Action / Multicast Forward Method |
| Group Address | |||
| Router Port | |||
| Forward All Table |   | ||
| Throttling |   | ||
| Filtering Profile |   | ||
| Filtering Binding |   | ||
| IGMP Snooping | Property | State / Version / Report Suppression | |
| Querier |   | ||
| Statistics |   | ||
| MLD Snooping | Property | State / Version / Report Suppression | |
| Statistics |   | ||
| MVR | Property | State / VLAN / Mode / Group Start / Group Count / Query Time | |
| Port Setting |   | ||
| Group Address |   | ||
| Security | RADIUS |   |   |
| TACACS+ |   |   | |
| AAA | Method List |   | |
| Login Authentication | Console / Telnet / SSH / HTTP / HTTPS | ||
| Management Access | Management VLAN |   | |
| Management Service | Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout | ||
| Management ACL |   | ||
| Management ACE |   | ||
| Authentication Manager | Property |   | |
| Port Setting |   | ||
| Sessions |   | ||
| Port Security |   |   | |
| Protected Port |   |   | |
| Storm Control |   | State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) | |
| DoS | Property |   | |
| Port Setting |   | ||
| Dynamic ARP Inspection | Property |   | |
| Statistics |   | ||
| DHCP Snooping | Property |   | |
| Statistics |   | ||
| Option82 Property |   | ||
| Option82 Circuit ID |   | ||
| IP Source Guard | Port Setting |   | |
| IMPV Binding |   | ||
| Save Database |   | ||
| ACL | MAC ACL |   |   |
| MAC ACE |   |   | |
| IPv4 ACL |   |   | |
| IPv4 ACE |   |   | |
| IPv6 ACL |   |   | |
| IPv6 ACE |   |   | |
|   | ACL Binding |   |   |
| QoS | General | Property | CoS / DSCP / CoS-DSCP / IP Precedence |
| Queue Scheduling | Strict Priority / WRR | ||
| CoS Mapping |   | ||
| DSCP Mapping |   | ||
| IP Precedence Mapping |   | ||
| Rate Limit | Ingress / Egress Port |   | |
| Egress Queue |   | ||
| Diagnostics | Logging | Property | Console / RAM / Flash |
| Remote Server |   | ||
| Mirroring |   |   | |
| Ping |   |   | |
| Traceroute |   |   | |
| Copper Test |   |   | |
| Fiber Module |   |   | |
| UDLD | Property | Message Time | |
| Neighbor |   | ||
| Management | User Account |   |   |
| Firmware | Upgrade / Backup | Action (Upgrade / Backup) / Method (TFTP / HTTP) | |
| Active Image | Active Image / Backup Image | ||
| Configuration | Upgrade / Backup | Action (Upgrade / Backup) / Method (TFTP / HTTP) | |
| Save Configuration | Source File / Destination File, Restore Factory Default | ||
| SNMP | View |   | |
| Group |   | ||
| Community |   | ||
| User |   | ||
| Engine ID |   | ||
| Trap Event | Authentication Failure / Link UP_Down / Cold Start / Warm Start | ||
| Notification |   | ||
| RMON | Statistics |   |   |
| History |   |   | |
| Event |   |   | |
| Alarm |   |   |
