Code: 112532
EAN: 4038816026736
Marque: ALLNET
MPN: ALL-SG8205PD

5-port 10/100/1000M PoE Ethernet Switch with 2-port PoE and 1-port PD

Highlights:

  • 5-Port 10/100/1000BaseT(X) with 2 PSE Port and 1 PD Port
  • Compliant with 2x IEEE 802.3af PSE and IEEE802.3at PD Input
  • Metal case with Palm, Size
  • NO power supply needed when powered over PD Port
  • FANLESS DESIGN

The device is a powerful, high-performance Gigabit Ethernet Switch, with all 5 ports capable of 10/100/1000Mbps auto-negotiation operation (NWay), which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and

imaging applications. Moreover, the 10/100/1000Mbps auto-sensing ability provides an easy way to migrate 10/100Mbps to 1000Mbps network with no pain.

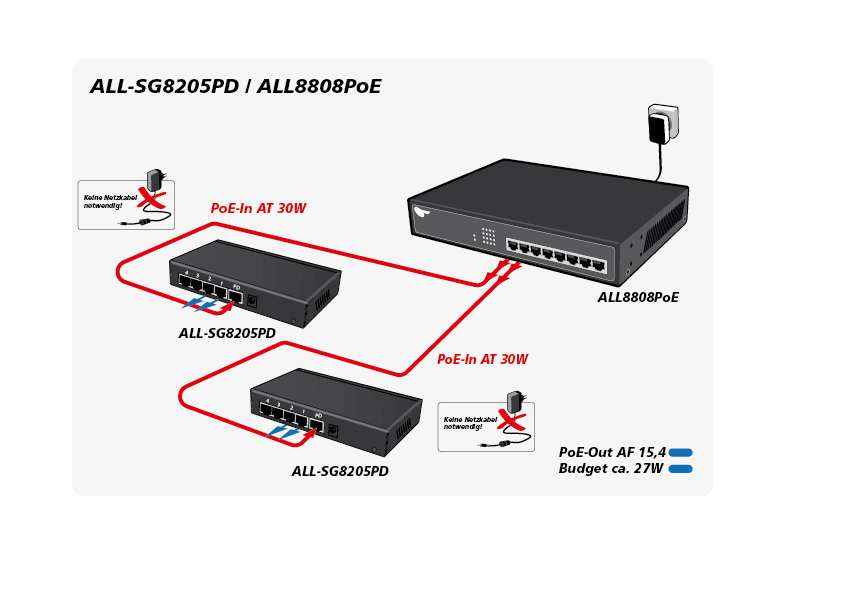

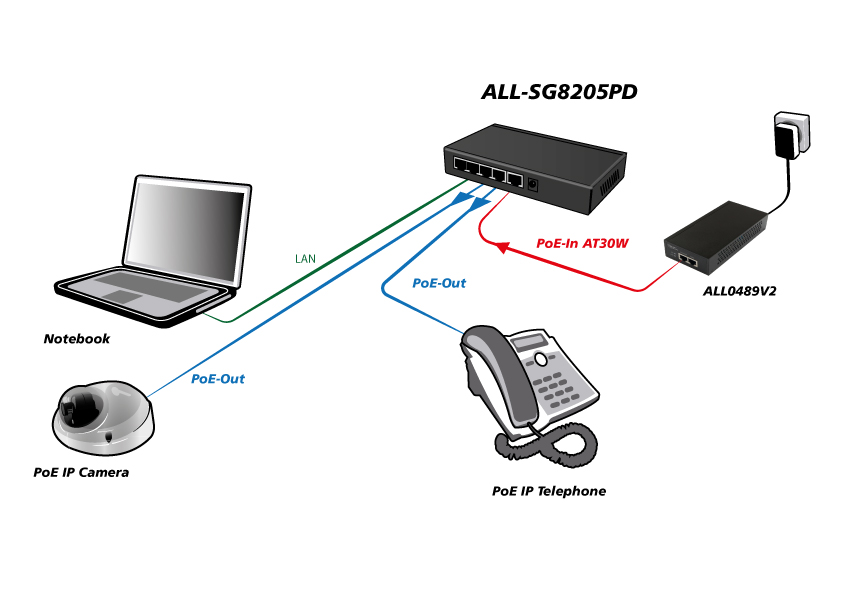

This switch supports PoE pass-through, having both PD (Powered Device) and PSE (Power Sourcing Equipment) features in one single device, which means the switch could get power from the PD port by connecting to a PSE device and supply power on the 2 PSE ports for connected devices via CAT 5e or better twisted cables. By integrating the data transmitting cable and power cord, it eliminates the effort constructing your network. You could easily connect a Wireless AP or a VoIP phone (PD devices) to this switch without looking outlets for them. Over current protection and circuit shorting protection are also supported to ensure the safety.

The switch is plug-n-play without any software to configure and also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LED indicators on the front-panel provide the operating status of individual port and whole system.

Technical Details:

Standards

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet (PD INPUT)

IEEE 802.3 10BaseT

IEEE 802.3u 100BaseTX

IEEE 802.3ab 1000BaseT

IEEE 802.3x Flow Control

Features

Number of Ports: 5 10/100/1000BaseT(X) with 2 PSE Port and 1 PD Port

Transmission Method: Store and Forward

Filtering/Forwarding Rates

1000Mbps port ? 1,488,000pps

100Mbps port - 148,800pps

10Mbps port - 14,880pps

Buffer Memory

128K Bytes frame Buffer

MAC Table

4000

Transmission Media

10/100BaseTX Cat. 5 UTP/STP

1000BaseT Cat. 5E UTP/STP

Led Indicators

Device:

1x Power

1x Uplink

1x PD

per Port:

je 1x LINK/ACT

2x PoE PSE

Power Supply

48V/DC with 36W or 1x Port PoE IEEE802.3at INPUT

Power Budget

Powered from PD Port : 25W "Uplink PD"

Powered from PD Port and 36W power adaptor :36W (The power adaptor is for optional)

Dimensions

115 × 85 × 26 mm (L x W x H)

Weight

0,4kg

Operating Temperature

0 to 50°C

Humidity

10 to 90% RH (non-condensing)

Certifications

FCC Class B, CE
