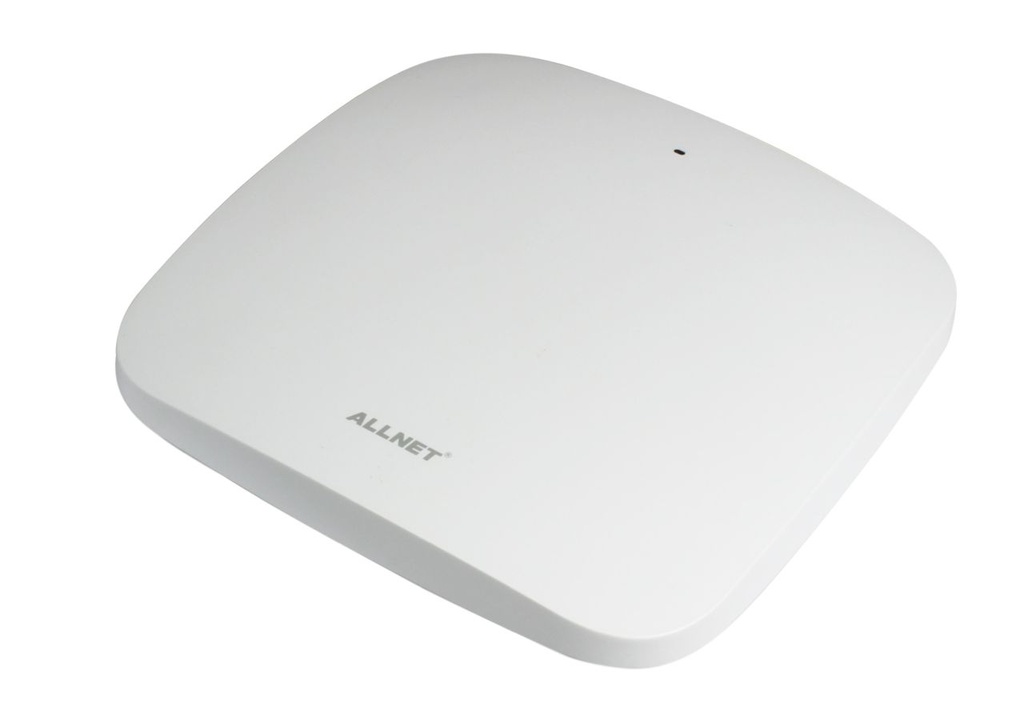

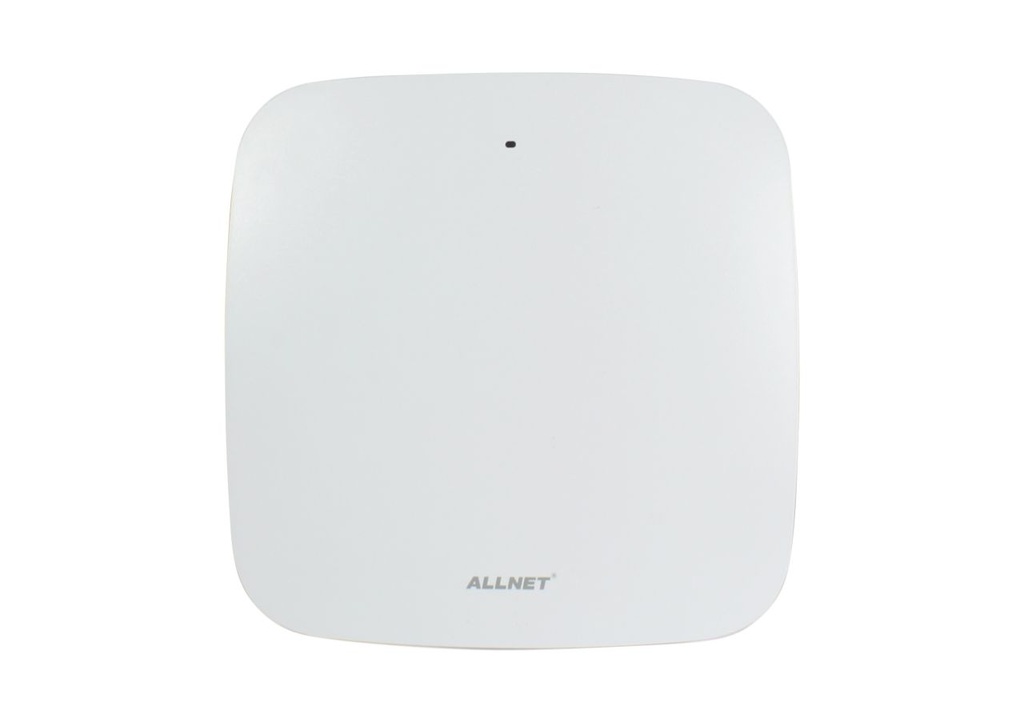

ALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Indoor • 2.5 GbE • ALL-WAPC0522AX-3000 • Apollo
| Marque: ALLNET |
EAN:
4038816126658
Référence interne:
ALL-WAPC0522AX-3000
ALLNET Apollo Wireless AP WIFI6 &bull AX3000 &bull 2x2 &bull Indoor &bull 2.5 GbE &bull ALL-WAPC0522AX-3000 &bull Apollo
Highlights:
- Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices
- WPA3 & WPA2-AES authentication support
- 5 dBi integrated 2x2 antenna
- Supports up to 2,400 Mbps in the 5GHz frequency band & 574 Mbps in the 2.4GHz frequency band
- Support 5GHz DFS channels
- Local and remote management over FitController controller without fees
- 2,5 GBit 802.3af PoE port for easy placement up to 328 feet from a power source
- Choice of AP and WDS modes to meet your management & deployment requirements.
- Operation as SINGLE AP or with on-prem controller ALL-AC100.
ALLNET Apollo Series ALL-WAPC0522AX-3000 2x2 Lite Managed Indoor Wireless Access Point offers advanced 802.11ax technology, granting users incredibly speedy and efficient performance with a maximum theoretical speed of 574 Mbps on the 2.4GHz frequency and an incredible 2,400Mbps on 5GHz frequency! Furthermore it's safeguarded by top-tier WPA3/WPA2PSK AES encryption protocols for unparalleled security. security.
 Physical Interfaces:


Technical Details Basics:
| Basic | ALL-WAPC0522AX-3000 Apollo Entry 2x2 Entry AP | ||
| Main Chipset | IPQ5018 ARM A53, 1GHz Dual-Core | ||
| Flash | 8MB SPI NOR (reserved) 128MB NAND | ||
| RAM | 512MB DDR3 | ||
| Transmit Power (Chain + Combining Gain) | 2.4GHz: 21dBm | ||
| 5GHz: 21dBm | |||

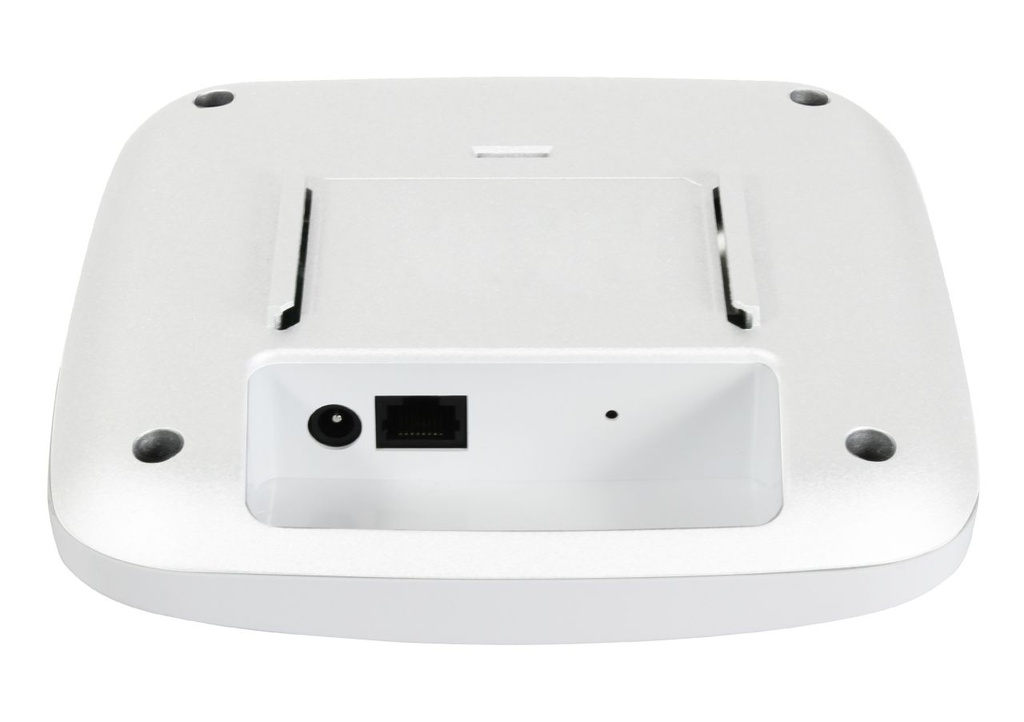

| Interface | 1x 10/100/1000/2500Mbps RJ45 Port IEEE802.3at PoE IN 1x Reset Button 1x DC Barrel Jack | ||
| Operating Temperature | 0 ~ 40°C | ||
| Dimensions (W x L x H) | 160 x 160 x 30mm | ||
| Enclosure Material | Plastic (Top Cover) Metal (Bottom Cover) | ||
| Certification (Generic) | FCC, CE | ||
Fully Technical Details:
| Fully |
| ||
| Wireless Radio Specification | |||
| Access Point Type | Indoor, dual radios concurrent, | ||
| Frequency Radio | 2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios and channels will be varied on the configured regulatory domain. | ||
| Supported Radio Technology | 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) 802.11ax supports very high throughput (VHT)&mdashHE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT)&mdashVHT 20/40/80 MHz 802.11n supports high throughput(HT) &mdashHT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio &ndashVHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU | ||
| Supported Modulation Type | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM | ||
| Transmit Power (Combined) | 2.4GHz: 21dBm 5GHz: 21dBm Maximum power is limited by regulatory domain | ||
| MU-MIMO | MU-MIMO allows multiple spatial streamsto be allocated to different clients simultaneously on both download and upload sides. | ||
| Tx Beamforming (TxBF) | Increasing signal reliability and transmitting distance. | ||
| Power | |||
| Maximum Power Consumption (TBD,estimated) | 17.4W | ||
| PowerSource | Standard IEEE802.3at DC IN 12V/2A | ||
| Antenna | |||
| Internal Antenna | 2.4GHz:4dBi 5GHz:5dBi BLE2.4GHz:4.5dBi (reserved) | ||
| Interfaces | |||
| Networking Interface | One 10/100/1000/2500 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Ports (reserved) | ||
| Reset Button | One(1) Reset Button (Convert Access Point to the Factory default or the Users Default) | ||
| DCIN | One(1) 12V DC IN | ||
| Mounting | |||

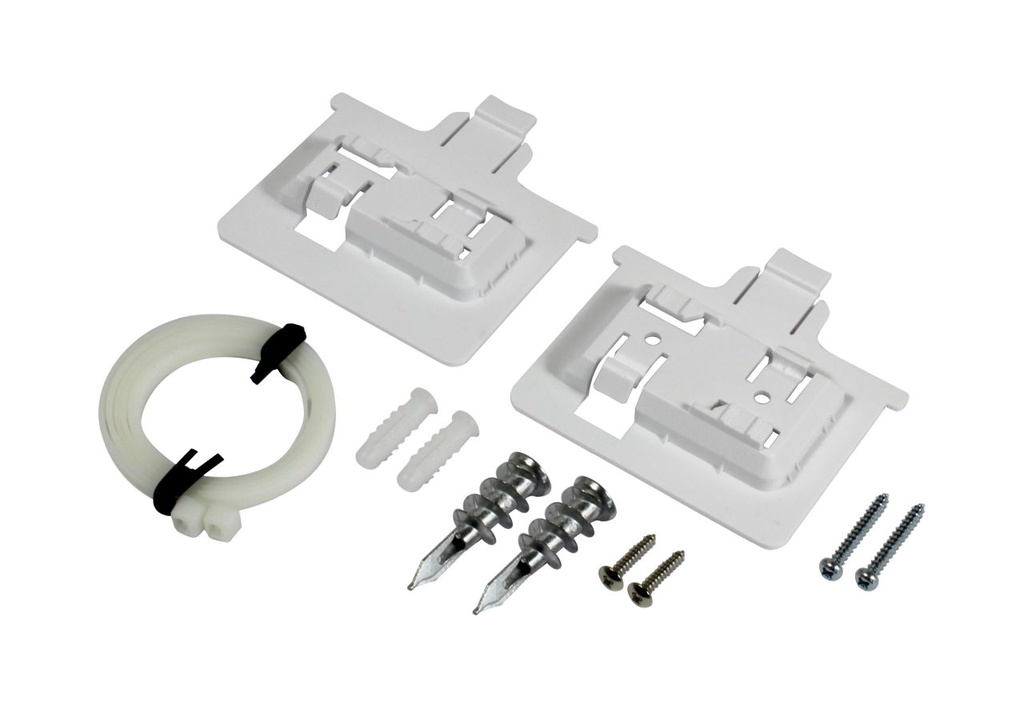

| Ceiling or Wall Mounting | Mount Access Point in on the ceiling or wall via included accessories | ||
| Mechanical & Environment | |||
| Dimensions (LxWxH) | 160mmx160mmx30mm | ||
| Operating | Temperature: 0°C~40°C Humidity:0%~90% typical | ||
| Storage | Temperature: -20°C~70°C Humidity:0%~90% typical | ||
| Marks | FCC Subpart15 B Subpart C 15.247 Subpart E 15.407 CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024 | ||
RF Performance Specification Wireless Indoor Access Point
| Channel | Data Rate | Transmit Power (Typical AVG.) | Receive Sensitivity | ||||
| Tolerance = +/-1.5 dB | |||||||
| 2.4GHz | 5GHz | 2.4GHz | 5GHz | ||||
| Combine | EIRP | Combine | EIRP | ||||
| 802.11b | 1M | 21 | 25 | - | - | -95 | - |
| 11M | 21 | 25 | - | - | -88 | - | |
| 802.11g/a | 6M | 21 | 25 | 21 | 26 | -92 | -92 |
| 54M | 18 | 22 | 18 | 23 | -74 | -73 | |
| 802.11n HT20 | MCS0 | 21 | 25 | 21 | 26 | -92 | -92 |
| MCS7 | 18 | 22 | 18 | 23 | -74 | -72 | |
| 802.11n HT40 | MCS0 | 21 | 25 | 21 | 26 | -91 | -89 |
| MCS7 | 18 | 22 | 18 | 23 | -72 | -64 | |
| 802.11ac VHT20 | MCS0 | 21 | 25 | 21 | 26 | -92 | -92 |
| MCS8 | 17 | 21 | 17 | 22 | -67 | -67 | |
| 802.11ac VHT40 | MCS0 | 21 | 25 | 21 | 26 | -91 | -89 |
| MCS9 | 17 | 21 | 17 | 22 | -66 | -64 | |
| 802.11ac VHT80 | MCS0 | - | - | 20 | 25 | - | -86 |
| MCS9 | - | - | 17 | 22 | - | -61 | |
| 802.11ac VHT160 | MCS0 | - | - | 20 | 25 | - | -83 |
| MCS11 | - | - | 16 | 21 | - | -59 | |
| 802.11ax HE20 | MCS0 | 21 | 25 | 21 | 26 | -92 | -92 |
| MCS11 | 16 | 20 | 16 | 21 | -62 | -61 | |
| 802.11ax HE40 | MCS0 | 21 | 25 | 21 | 26 | -90 | -89 |
| MCS11 | 16 | 20 | 16 | 21 | -59 | -58 | |
| 802.11ax HE80 | MCS0 | - | - | 20 | 25 | - | -86 |
| MCS11 | - | - | 16 | 21 | - | -56 | |
| 802.11ax HE160 | MCS0 | - | - | 20 | 25 | - | -83 |
| MCS11 | - | - | 15 | 20 | - | -53 | |
