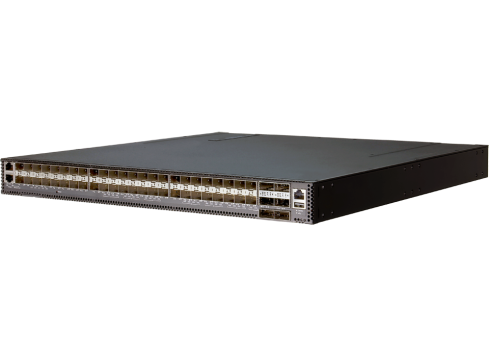

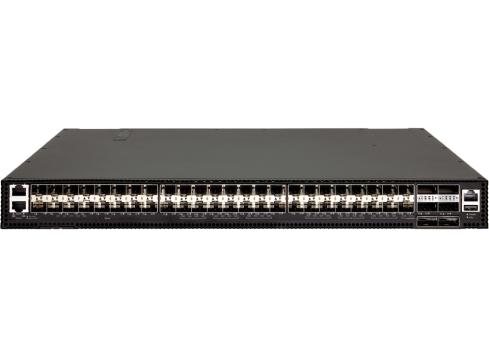

EdgeCore Switch full manged Layer3 • 54 Port • 48 x 10G SFP+ • 6x 100G QSFP28 • 19 1 HE • Datacenter Switch • Front-to-back • DCS201 • 5835-54X-O-AC

EdgeCore DCS201 • AS5835-54X, 48 x 10G SFP+ and 6 x 100G QSFP28 ports, Broadcom Trident3.X5 ASIC, Quad-core Intel Atom C3558 CPU, dual hot-swappable 600W AC PSUs and 4+1 Fan Modules with Front-to-Rear airflow, 2 front rack mounting ears, 3 years Hardware Warranty

Features

• 48 x SFP+ switch ports, supporting 10GbE (DAC, 10GBASE-SR/LR) or 1GbE (1000BASE-T/SX/LX)
• 6 x 100 QSFP28 switch ports, each supporting 100GbE (DAC, 100GBASE SR4/LR4) or 4 x 25GbE (DAC or fiber breakout cable)
• VXLAN and NVGRE tunneling support in hardware for network virtualization
• Rack mountable in standard 19? racks
• Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.

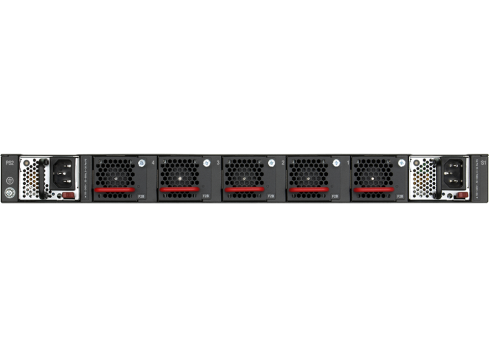

• All ports on front PSUs, fan modules on rear
• Hot-swappable, load sharing, redundant AC or -48 VDC PSUs
• Hot swappable 4+1 redundant fan modules
• Management: Ethernet and console RJ-45 ports USB storage port
• Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commerical NOS offerings

Compatible Software Option

• BISDN Linux

• CapGemini – SDvAS

• CGS – COS

• IP Infusion – OcNOS

• Open Compute Project – Open Network Linux

• Network Linux

• Pica8 – PicOS

• Pluribus Netvisor ONE

• SONiC
