  3. ALLNET ALL-GHN102v2-Coax Bridge for Coax-Connections
Prix à 0 ( don't touch!)

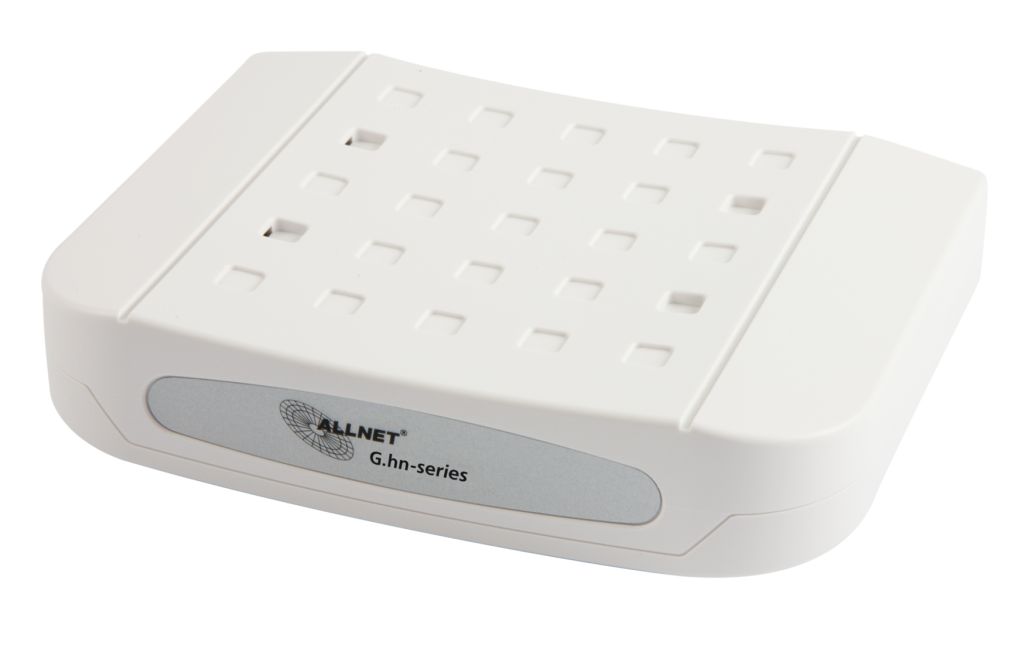

ALLNET ALL-GHN102v2-Coax Bridge for Coax-Connections

https://www.allnetfrance.fr/web/image/product.template/69381/image_1920?unique=1a99be4
ALLNET ALL-GHN102v2-Coax Bridge for Coax-Connections

0,00 € 0.0 EUR 0,00 € Hors taxes

92,04 € Hors taxes

Connectez-vous pour voir les prix

  • Marque

Cette combinaison n'existe pas.

Contactez-nous
Marque: ALLNET

Conditions générales
Contactez-nous pour nous demander plus d'informations sur ce produit.

Partager

EAN: 4038816051400
Référence interne: ALL-GHN102v2-Coax

Highlights:

  • up to 500 Mbps G.hn Port as Homenetwork-Backbone over TV-Wirering
  • Two 100 / 1000Mbps Gigabit Ethernet Ports for Ethernet-Terminals (PC, Set-Top-Box, TV, WiFi-AP&acutes or other Ethernet-Devices with RJ45-Ethernetport...)
  • Energyefficiency&nbsp (green) Ethernet-Support
  • Filter Built-in to Eliminate Noise from TV Signal Indication
  • 6MHZ - 76MHz
  • QoS Priority Mapping Support
  • Tag VLAN Configuration
  • IGMP Snooping Control
  • Status and Statistic
  • up to 15 devices possible

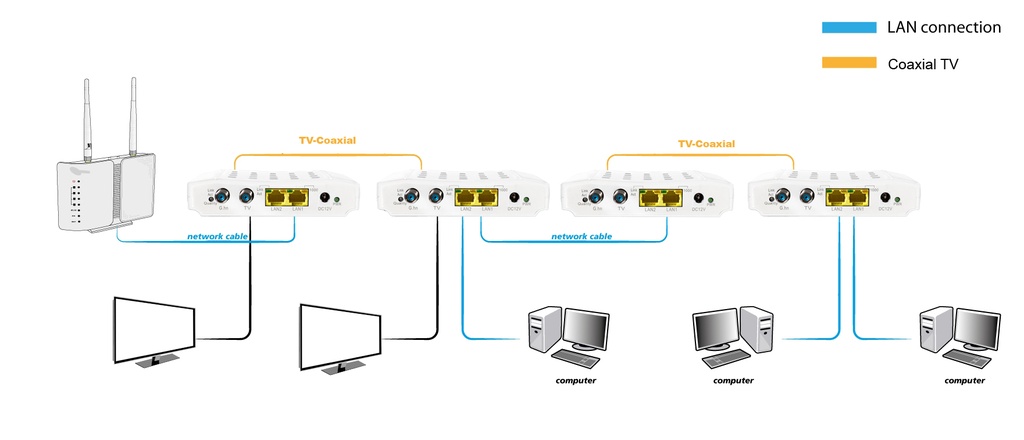

With the G.HN Gigabit Ethernet Bridge ALL-GHN102v2-Coax, you can, with the existing TV cabling, expand your home network at home. There is no additional network wiring required. You can simply use the existing coax wiring in the wall. With the ALL-GHN102v2-Coax they can as quickly expand your network without rewiring and with little effort.

&nbsp

Element

Specification

Network&nbsp Standard:

ITU G.9960 G.hn over Coaxial Cable Baseband IEEE 802.3u 100M Fast Ethernet IEEE802.3ab 1000M Gigabit Ethernet

IEEE 802.3az Energy Efficiency Ethernet

Connectors:

Ethernet : Two RJ-45 Connectors

G.hn: Two F-Type Female Coax Connectors, One for G.hn, the Other for TV

G.hn Interface

Transmission power and spectrum
100m Coax 350 - 360 MBit/s net
4.5 +/- 1 dBm @ 2 - 200MHz
PHY measured rate

AES 128 Encryption

Gigabit Ethernet Interface

100/1000Mbps Auto Negotiation MDI/MDI-X Auto&nbsp Crossover

Quality of Service

Priority Mapping Based on IEEE 802.1p Guaranteed G.hn Parameterized QoS

Management

IPv4 and IPv6 Support

Queuing Scheme Based on 802.1p/TOS TagVLAN ID Tag/UnTag or Pass Through GMP Snooping Control

Statistic and Status

LED-Display:

&ldquoPower&rdquo LED

G.hn &ldquoLink/Activity/Quality&rdquo LED Ethernet &ldquoLink/Activity&rdquo LED x 2

Environmental&nbsp Conditions:

Operating Temperature : 0&deg ~ 50&deg (32&deg ~ 120&deg)

Storage Temperature &ndash10&deg ~ 65&deg (14&deg ~ 149&deg) Operating Humidity : 10% ~ 95%, Non-condensing

Power Consumption:

4W on 12 Volt

Physical&nbsp Dimension:

130mm (W) x 95mm (D) x 32mm (H)

Marks

CE
