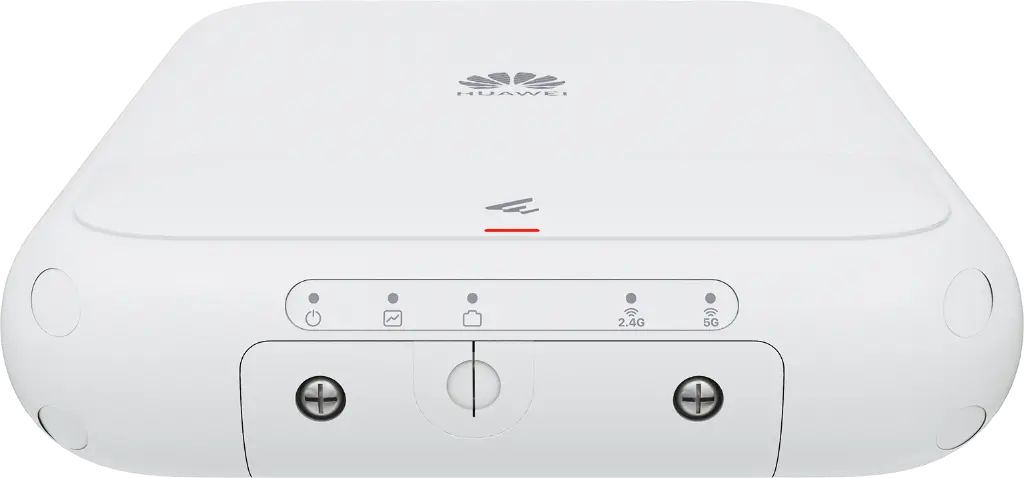

Huawei eKit Wireless AP WIFI7 • BE3600 • 2x2 • Outdoor • 2,5GbE • AP771
Wireless LAN Equipment,AP771,AP771(11be outdoor,2+2 dual-band,omnidirectional antenna),AP771,RJ45*1,11be,dual-band
| Marque: Huawei Datacom |
EAN:
6901443469598
Référence interne:
AP771
| Installation Type | Wall,Pole |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 270 mm x 196 mm x 51 mm (10.63 in. x 7.72 in. x 2.01 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 356 mm x 250 mm (4.33 in. x 14.02 in. x 9.84 in.) |
| Weight without packaging [kg(lb)] | 1.14 kg (2.51 lb) |
| Weight with packaging [kg(lb)] | 1.78 kg (3.92 lb) |
| Power supply mode | PoE |
| Rated input voltage [V] | PoE: 802.3at/af |
| Input voltage range [V] | PoE: 802.3at/af |
| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing |
| Long-term operating temperature [°C(°F)] | –30°C to +60°C (–22°F to +140°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | Operating humidity: 5% RH to 95% RH Storage humidity: 5% RH to 95% RH (non-condensing) |
| Ingress protection level (dustproof/waterproof) | IP65 |
| Radio number | 2 |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be |
| Radio interface | Built-in omnidirectional antennas |
| Antenna gain | 2.4 GHz: 4 dBi/chain (peak value) 2 dBi (combined gain) 5 GHz: 7 dBi/chain (peak value) 4 dBi (combined gain) |
| Maximum transmit power | 2.4 GHz: 25 dBm/chain 28 dBm (combined power) 5 GHz: 24 dBm/chain 27 dBm (combined power) |
| Maximum power consumption [W] | 18.8 |
| Operating frequency band | 2.4GHz,5GHz |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz |
| Optimal Signal Distance (m) | 130 |
| Max Number of Access Users | 256 |
| Recommended Number of Access Users | 130 |
| Device Rate | 3.57 Gbps |
