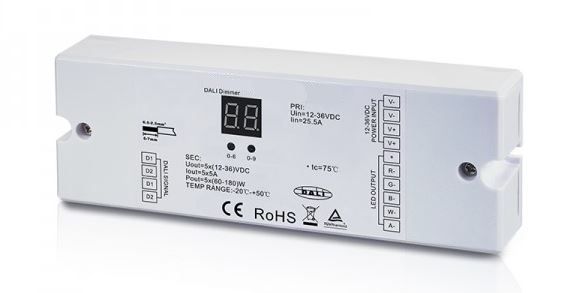

Synergy 21 LED Controller EOS 07 DALI DT8 RGB/W

DALI Controller der EOS 07 Series f&uumlr RGB-WW Produkte wie LED Streifen, RGB-WW Straherl oder &aumlhnliches

1. DT8 version 5 channels for RGBWW 5ch dimmer
2. DC version, 12-24VDC, 5ch x 5A, constant voltage
3. Overcurrent / overheat protection applied&quot

&nbsp

&nbsp

The RGBWW Controller&nbspis a 5 channel constant voltage RGBWA DT8 DALI dimmer that complies to the latest IEC 62386-209:2011 standard and supports DT8 device commands. All output channels R, G, B, W and Amber of this device is controlled via a single DALI address and it is compatible with universal DALI master controllers that supports DT8 commands. DT8 commands enable easy RGB color adjusting. DALI address can be manually assigned and displayed via digital display. It is configurable via DALI software tool and DALI USB interface.

Key Features

• DALI certified
• T&UumlV CE certified
• RGBWA DT8 DALI Dimmer with RGB Color Control
• Complies to the latest IEC 62386-209:2011 standard
• 5 channels constant voltage output controlled via a single DALI address
• R, G, B, W and Amber 5 channels output
• Control of five PWM outputs R, G, B, W and A via DALI DT8 color type RGBWA.
• Color control as defined in the DALI specification for device type 8, color type RGBWA.
• Compatible with universal DALI master controllers that supports DT8 commands
• DALI address can be manually assigned and displayed via digital display
• Configurable via DALI software tool and DALI USB interface
