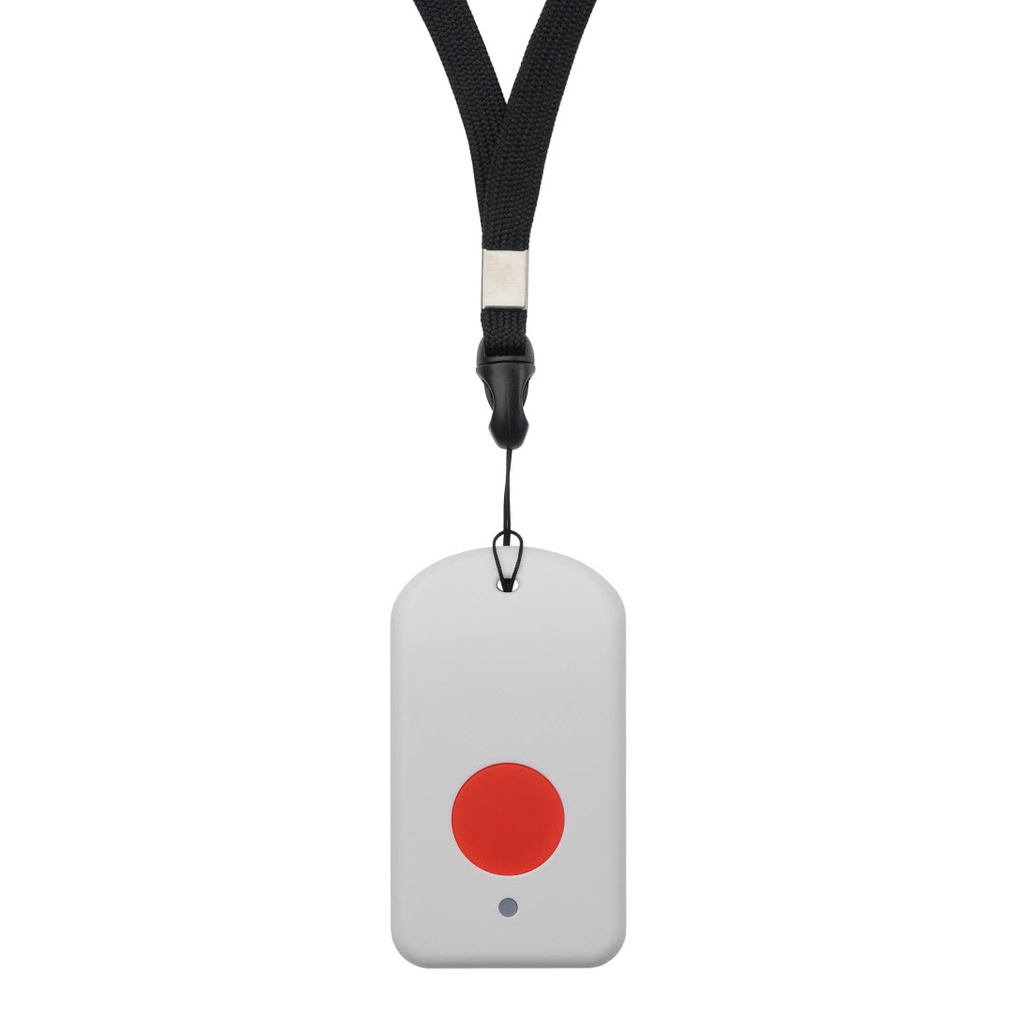

DRAGINO&nbspTrackerD-EU868 GPS Tracker

Overview

TrackerD is an&nbspOpen Source LoRaWAN Tracker&nbspbased on&nbspESP32 MCU&nbspand&nbspSemtech LoRa Wireless Chip.

In TrackerD, there are various sensors such as GPS, WiFi, BLE, Temperature, Humidity, Motion Detection, and Buzzer. User can use TrackerD for different tracking scenario.

TrackerD is program friendly. Developers can use Arduino IDE to customize the software of TrackerD to fit their IoT solution.

The LoRa wireless technology used in TrackerD allows the user to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional tracking services.

TrackerD is equipped with a&nbsp1000mAh Li-on rechargeable battery. Each TrackerD has a worldwide unique OTAA keys to join the LoRaWAN network.&nbsp

Properties

• LoRaWAN 1.0.3 Class A
• ESP32 PICO D4
• SX1276/78 Wireless Chip
• Arduino IDE Compatible
• Open source hardware / software
• Regular/ Real-time GPS,BLE,WIFI tracking
• Built-in3 axis accelerometer (LIS3DH)
• Humidity / temperature sensor :&nbspGXCAS Technology GXHT3X
• Motion sensing capability
• Power Monitoring
• Charging circuit via USB port
• 1000mA Li-on Battery power
• Tri-color LED, Alarm button
• Datalog

Applications

• Logistics and Supply Chain Management
• Human tracking&nbsp

Technical Data

Microcontroller

• Espressif ESP32 PICO D4
• MCU: ESP32 PICO D4
• Bluetooth: Bluetooth V4.2 BR/EDR and Bluetooth LE
• WiFi : 802.11 b/g/n (802.11n up to 150 Mbps)
• Integrated SPI flash : 4 MB
• RAM: 448 KB
• EEPROM: 520 KB
• Clock Speed: 32Mhz

Power supply

• Supply Voltage:&nbsp5V via USB port or Internal li-on battery
• Operating Temperature: -40 ~ 60&degC

LoRa Sepcifications

• Frequency Range, &nbsp168 dB maximum link budget.+20 dBm - 100 mW constant RF output vs.
  • Band 1 (HF): 862 ~ 1020 Mhz
• +14 dBm high efficiency PA.
• Programmable bit rate up to 300 kbps.
• High sensitivity: down to -148 dBm.
• Bullet-proof front end: IIP3 = -12.5 dBm.
• Excellent blocking immunity.
• Low RX current of 10.3 mA, 200 nA register retention.
• Fully integrated synthesizer with a resolution of 61 Hz.
• FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
• Built-in bit synchronizer for clock recovery.
• Preamble detection.
• 127 dB Dynamic Range RSSI.
• Automatic RF Sense and CAD with ultra-fast AFC.
• Packet engine up to 256 bytes with CRC.
• LoRaWAN 1.0.3 Specification

Battery

• 1000mA Li-on Battery power (for model TrackerD)

Power Consumption

• Sleeping Mode: 200uA
• LoRa Transmit Mode: 125mA @ 20dBm 44mA @ 14dBm
• Tracking: max: 38mA&nbsp

Package content

• 1 x Dragino&nbspTrackerD-EU868
• 1 x USB&nbspCable&nbspfor charging and programming
